1-Piece Ball Valves
In stock
SKU
1-Piece Ball Valves
| Short Description | |
|---|---|
| Size | 1" to 2" |
| Material | Stainless Steel 316 |
| Handles | Stainless Steel 304 |
| Temperature Rating | -4⁰F to 302⁰F |
| Thread | Female NPT |
| Working Pressure | 1000 PSI |
| Seal | Teflon (PTFE) |
Starting at $8.09
Features:
- Uses:
- Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application.
- Advantages:
- A One piece ball valve is known for its low cost and Robust design.
- Low chance of leaking, since there are no body joints.
- Thread:
- Typical for threaded ball valves, the 1 piece comes with female NPT threads on both ports.

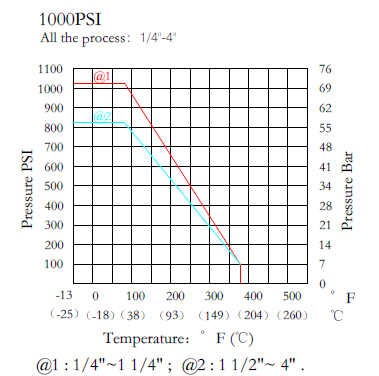

- Presure Rating:
- Pressure rated at 1000 PSI WOG (Water, Oil, Gas).
- Port:
- Designed with a reduced port, also known as a standard port.
- Material:
- Our 1-piece valves are made with quality grade 316 stainless steel.

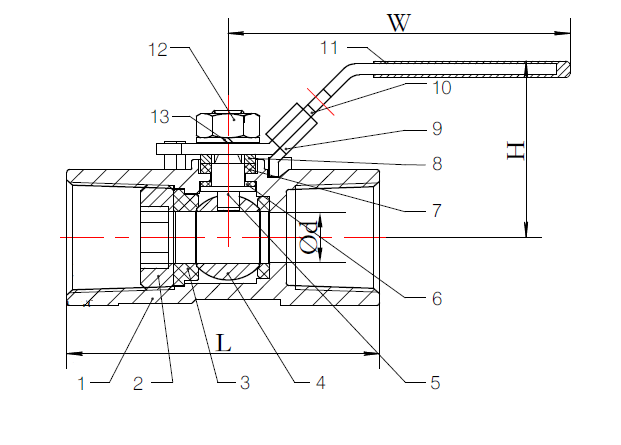

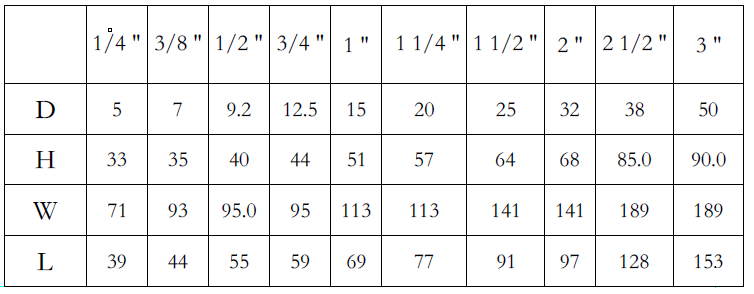

Material Chart and Dimensions:
Specifications:
| Short Description | |
|---|---|
| Size | 1" to 2" |
| Material | Stainless Steel 316 |
| Handles | Stainless Steel 304 |
| Temperature Rating | -4⁰F to 302⁰F |
| Thread | Female NPT |
| Working Pressure | 1000 PSI |
| Seal | Teflon (PTFE) |
